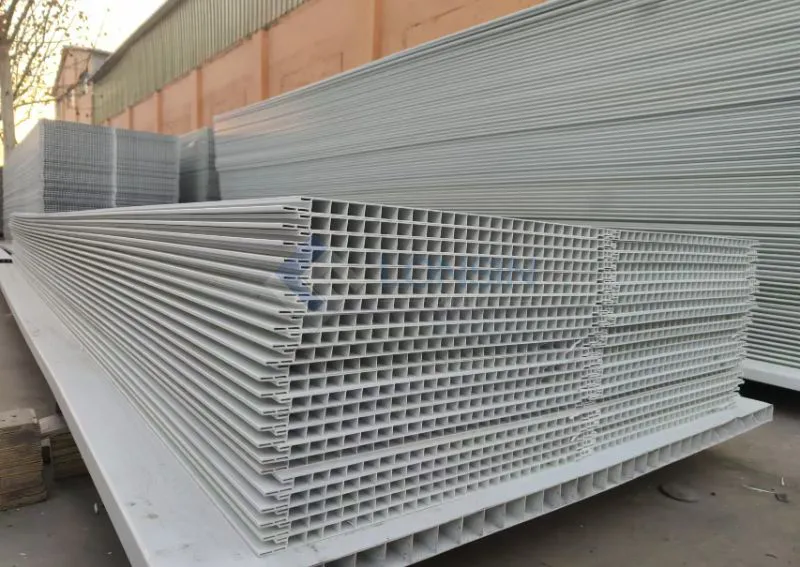

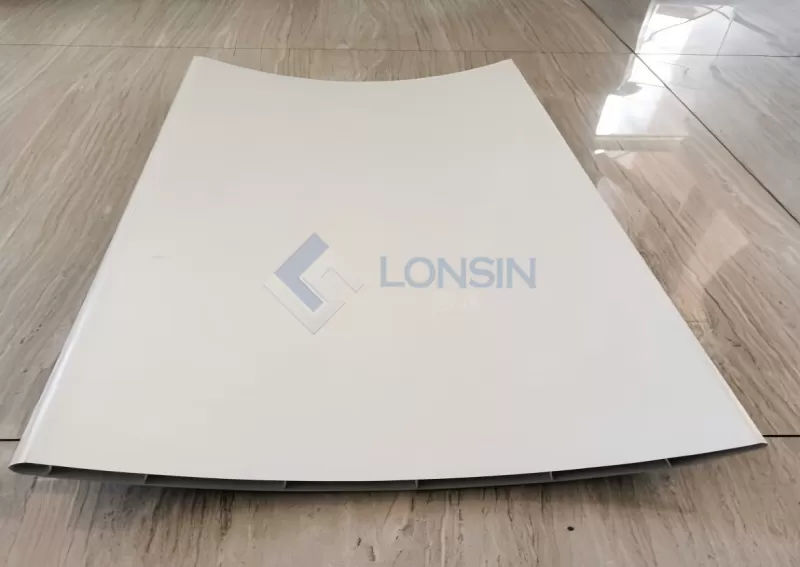

PVC Panel
Lonsin PVC panels are engineered for use in modern pig housing environments. These panels provide a waterproof, non-porous, and hygienic wall cladding solution that improves cleanliness and biosecurity inside farrowing rooms, nursery barns, and piglet pens.
Lonsin PVC panels are engineered for use in modern pig housing environments. These panels provide a waterproof, non-porous, and hygienic wall cladding solution that improves cleanliness and biosecurity inside farrowing rooms, nursery barns, and piglet pens.
With excellent impact resistance and chemical durability, our PVC wall panels outperform traditional cement or tile finishes in both installation speed and long-term maintenance.
It is used for inner wall and ceiling of pig house, can be used for finishing column partition, and can be used with corresponding thickness products.
Farrowing crates and sow stalls
Nursing rooms and piglet pens
Boar pens and gestation rooms
Veterinary isolation pens

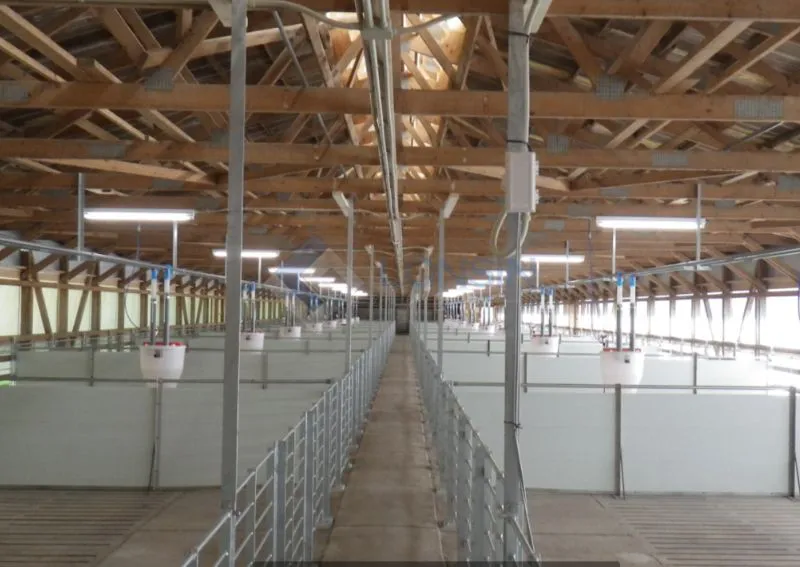

Side walls and ceiling panels for pig barns
Over 10 years of experience in livestock building materials
Large production capacity and fast delivery
OEM customization support for global customers
Strict quality control, ISO certified manufacturing
Used in over 30 countries across Europe, Asia, and Latin America
Q: Can PVC panels be used in high humidity areas?
Yes, they are waterproof and mold-resistant — perfect for pig houses.
Q: How are the panels installed?
Using tongue-and-groove locking with screws or rivets. Easy for contractors to handle.
Q: Are fire-retardant options available?
Yes, optional B1 grade panels meet most livestock building safety codes.
Q: Do you offer matching accessories?
Yes, including edge trims, corner caps, and U-channel profiles.
Request Samples or a Custom Quote
Interested in upgrading your pig barn with hygienic PVC wall panels? Contact us for a free consultation, technical catalog, or OEM quote today.

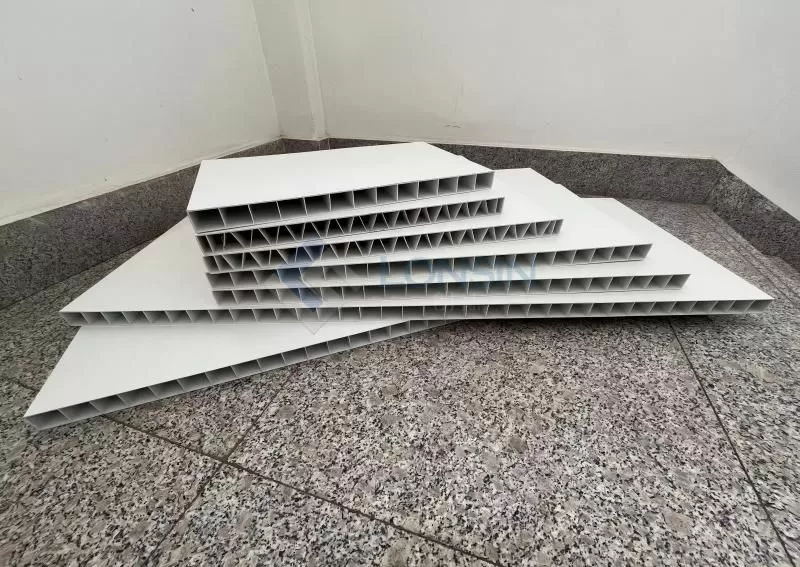

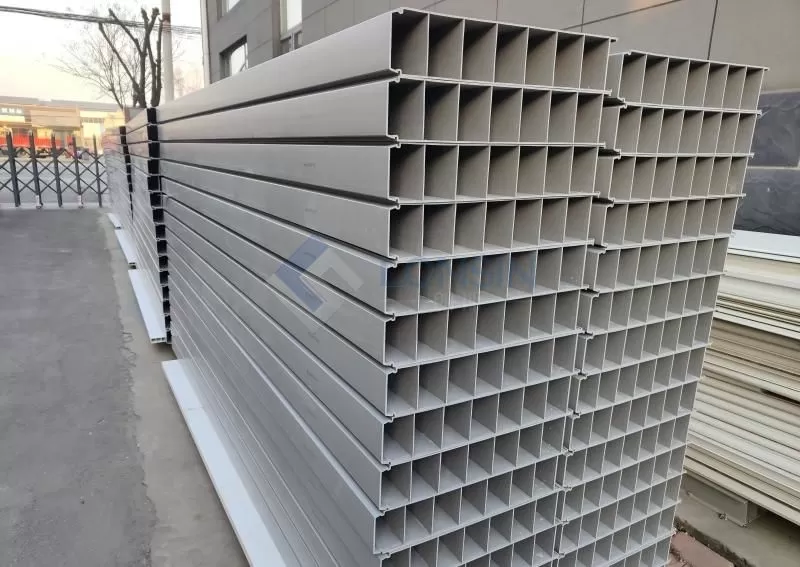

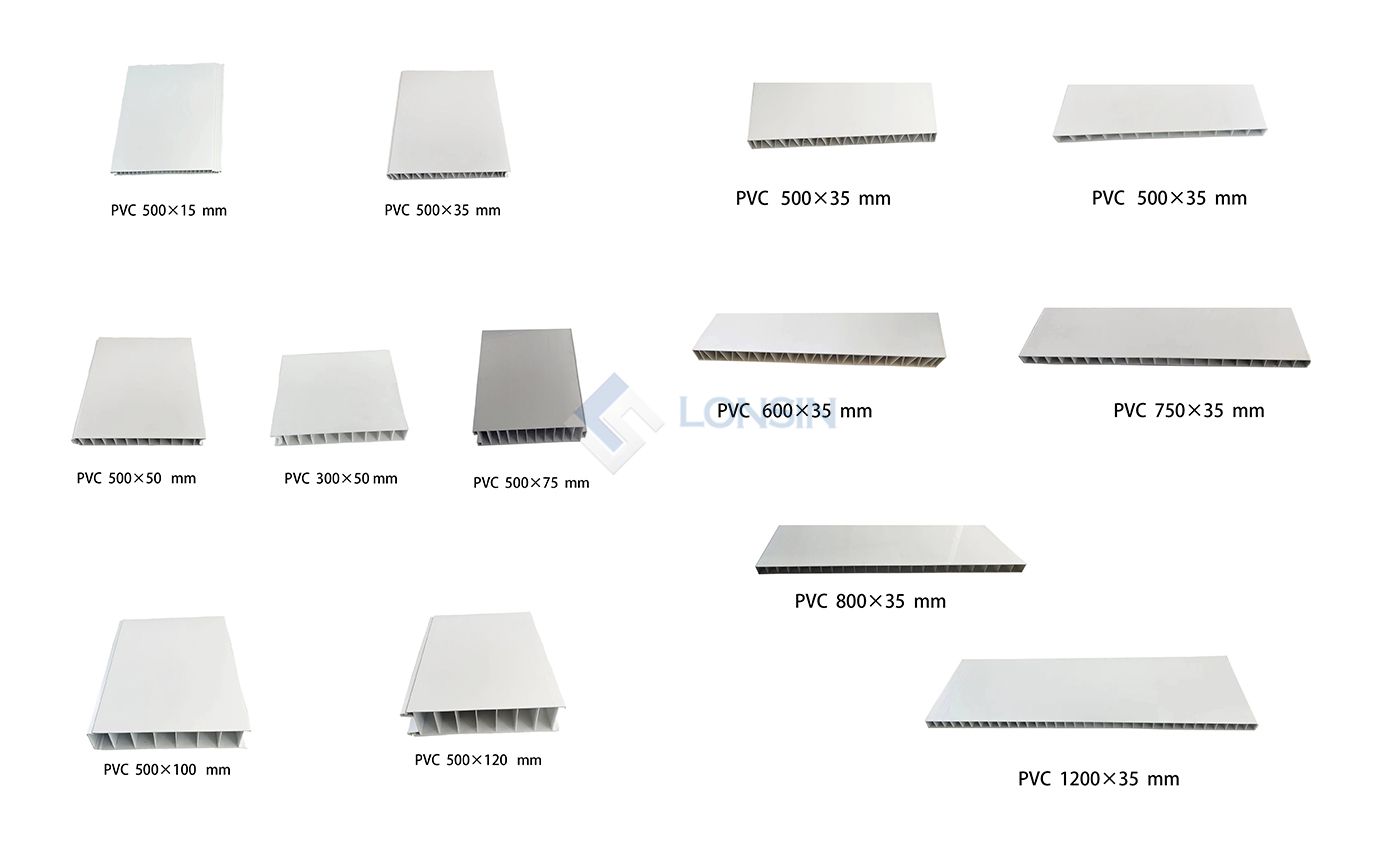

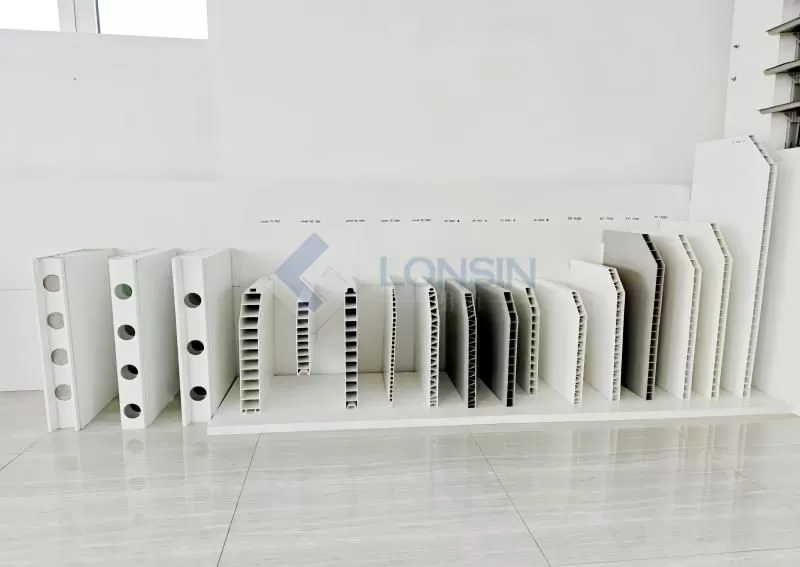

Thickness: 15mm/35mm/50mm/75mm/100mm/120mm;
Width: 350mm/500mm/600mm/750mm /1200mm/1500m
Wall thickness: 2.0mm/2.5mm/3.0mm
Rib thickness: 1.4mm/1.5mm/2.0mm/2.2mm/2.5mm
Waterproof & Non-Porous: Easy to clean with pressure washers, prevents mold and bacterial buildup.
Corrosion & Chemical Resistant: Withstands manure gases and disinfectants commonly used in pig barns.
Impact-Resistant Surface: Protects walls from pig contact or equipment collision.
Thermal Insulation: Helps maintain consistent indoor temperatures.
Quick Installation: Tongue-and-groove design allows fast and seamless installation.
Custom Sizes Available: We support OEM lengths, thicknesses, and finishes.
Good hardness and strength
Rigid PVC sheet has high hardness and strength, can withstand a certain amount of pressure and weight, can be used to make structural parts, building templates, etc., in many application scenarios can replace some metal and wood, and lighter weight, easy to handle and install.
Good dimensional stability
Its coefficient of linear expansion is small, and the size change is relatively small in different temperature environments. This makes PVC sheet has an advantage in the production of furniture, decorative materials and other products with high dimensional accuracy requirements, and it is not easy to cause deformation and warping due to temperature changes after installation.
Hygienic Surface - Non-porous, prevents bacterial growth (tested against E.coli & Salmonella)
Ammonia Resistance- Withstands harsh farm environments (pH 3-11)
Easy Cleaning - High-pressure washable, 50% faster cleaning than concrete walls
Thermal Insulation - R-value 1.25, maintains stable indoor temperature
Impact Resistant - 10x more durable than fiberglass panels (Tested at -30°C~70°C)
Waterproof and moisture-proof
Tight molecular structure, no water absorption, excellent waterproof performance. Whether it is in the wet bathroom, kitchen, or in the outdoor building decoration, it can effectively resist the erosion of water, and it is not easy to expand, deformation, mold and other problems.
Strong corrosion resistance
Resistant to most inorganic acids, alkali, salt and most organic solvents, suitable for use in chemical industry, electroplating and other corrosive environment, such as the lining of chemical equipment, pipelines and so on.
Good flame retardant
High flame retardant grade, with self-extinguishing, can prevent the spread of flame to a certain extent, improve the safety of the use of the site.
With good plasticity and machinability, it can beprocessed by cutting, sawing, planing, drilling, welding, bending and other ways to meet the needs of different shapes and sizes, and make a variety of complex products and components.

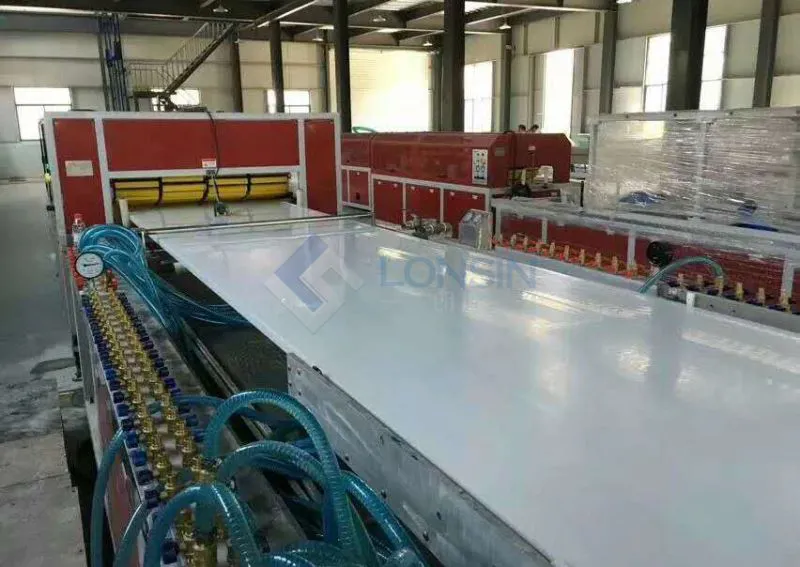

Utilize a PLC automatic control system to achieve precise temperature control, automatic measurement, and intelligent adjustment. Full automation of the production line reduces human intervention, resulting in a product qualification rate as high as 99.8%.
According to the needs of customers, different additives, pigments, etc., can be added to produce different colors, hardness, transparency of the plate to meet the diversified design and application needs.
In-house production line, supports OEM/ODM customization, fast delivery.
Product type
The shape, size and performance can be customized according to the specific requirements of customers.
Product size
Customized according to customer needs
Surface treatment
According to customer requirements, different surface treatment of the product to improve the corrosion resistance, wear resistance and beauty of the product.
Technical ability
Design ability: With professional design engineers, can design products and molds according to customer needs, to ensure the rationality and feasibility of the design scheme.
Process capability: Can choose the right process according to the characteristics and requirements of the product.
Quality control ability: Establish a sound quality control system, strict quality control of raw materials, production process, product inspection and other links to ensure that product quality d performance meet the requirements
Equipment capacity
Equipment capacity:Production equipment: We have advanced automated production equipment to meet the needs of different types and scales of production.
Processing equipment: equipped with the necessary mechanical processing equipment, such as lathes, milling machines, drilling machines, grinding machines, etc., in order to carry out subsequent processing and treatment of casting products, improve the accuracy and surface quality of products.
Testing equipment: We have a variety of testing equipment to accurately test and analyze the dimensional accuracy, composition and performance of the product.

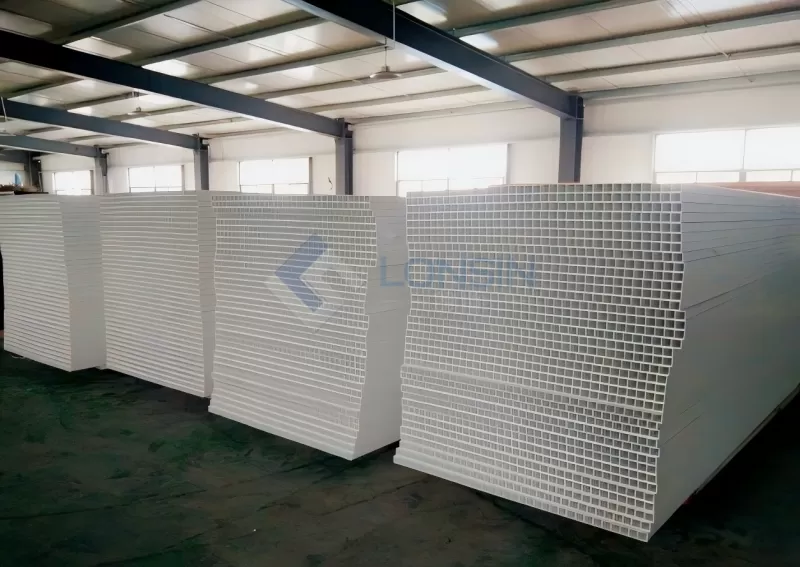

Production capacity
Production scale: Can organize production according to customer's order needs to ensure timely delivery of products. For large orders, there is sufficient production capacity and production efficiency.
Production flexibility: able to respond to customers' individual needs, small batch, multi-variety production, with the ability to quickly respond to market changes.
